Solving memory problem when starting Weblogic Server to run Oracle SOA suite    30th Ramadan 1431 Hijra

I Installed the Oracle Fusion Middleware version 11.1.1.3 mainly to run some SOA tutorial.

I am the kind of a guy who starts installation immediately before really reading lots of installation manuals. This does not mean that i am right! If you are not an experienced professional capable of maneuvering  software issues nimbly, I found an excellent step by step document that you can use to finish the installation steps safely

http://www.installationwiki.org/Installing_Oracle_SOA_Suite_11gR1



Note: Jdeveloper 11g does not come with the  SOA Composite Editor built-in so you need to go the Help menu idea and then click on Check for Updates

In order to deploy the SOA project, you need to start the Weblogic application server. I used the Weblogic Server that is shipped with the fusion software that i downloaded.

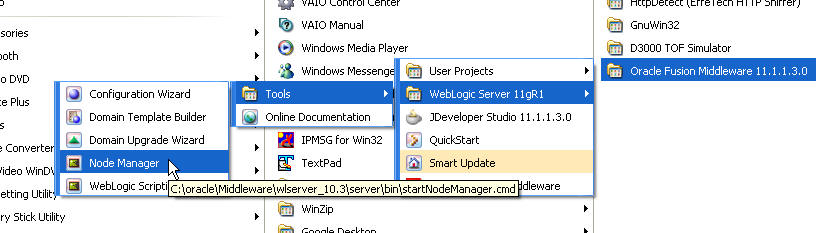

First step i invoked the node Manager

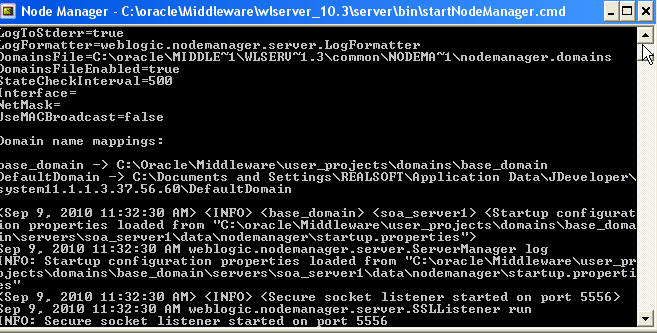

The node manager will open up a Command Window  and shows node manager console:-

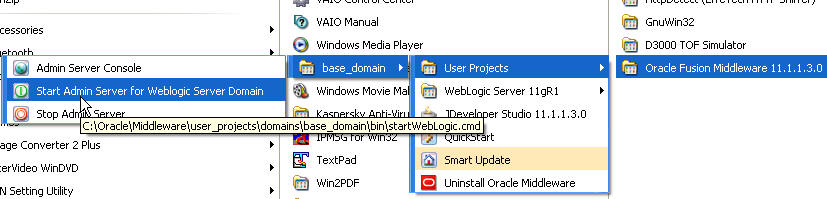

Next I tried to run the Admin Server

The command Window starts showing the console, but soon enough an error is generated and the console is immediately terminated

The error was



Error occurred during initialization of VM
Could not reserve enough space for object heap
Could not create the Java virtual machine.

By capturing the Console information, i spotted the current memory setting

JAVA Memory arguments: -Xms512m -Xmx1024m -XX:PermSize=128m -XX:MaxPermSize=512m

I decided to decrease the Xmx from 1024 to 512

To execute this modification, I learned that the Weblogic reads default env variables from a file called  SetDomainEnv located (in my case) inside the following folder

C:\oracle\Middleware\user_projects\domains\base_domain\bin

I searched for the string 1024 in the file , but could not find such a value, so I decided to check the scrip file the runs the Server which is

StartWeblogic.cmd

found in the same folder specified above

Below, you can find an excerpt of the code

%JAVA_HOME%\bin\java %JAVA_VM% -version
@REM added by ammar
set MEM_ARGS=-Xms512m -Xmx512m -XX:PermSize=512m -XX:MaxPermSize=512m

if "%WLS_REDIRECT_LOG%"=="" (
                        echo Starting WLS with line:
                        echo %JAVA_HOME%\bin\java %JAVA_VM% %MEM_ARGS% -Dweblogic.Name=%SERVER_NAME% -                         Djava.security.policy=%WL_HOME%\server\lib\weblogic.policy %JAVA_OPTIONS% %                        PROXY_SETTINGS% %SERVER_CLASS% %JAVA_HOME%\bin\java %JAVA_VM% %MEM_ARGS% -



the highlighted argument above is the variable that the JVM is using to set the memory arguments, therefore, I decided to modify the value in the startup file

Therefore, I added the following line just above the above code segment

@REM added by ammar
set MEM_ARGS=-Xms512m -Xmx512m -XX:PermSize=512m -XX:MaxPermSize=512m

This modification allowed the Admin Server for the Weblogic doman to run

Next :

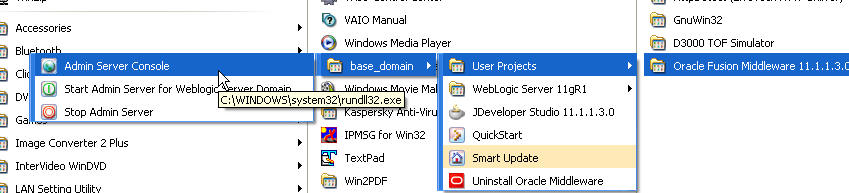

Start the admin console



Ops ,  I noticed that the SOA Server is Down

I tried to start it as shown below

But starting the soa_server1 kept failing.

I examined the logfile called soa_server1.log  in the directoy:

C:\oracle\Middleware\user_projects\domains\base_domain\servers\soa_server1\logs

and found the error

java.lang.OutOfMemoryError: PermGen space

repeating in many places in the logfile

####<Sep 9, 2010 12:45:33 PM EEST> <Info> <Deployer> <Ammar> <soa_server1> <[ACTIVE] ExecuteThread: '0' for queue: 'weblogic.kernel.Default (self-tuning)'> <<WLS Kernel>> <> <> <1284025533968> <BEA-149059> <Module /inspection.wsil of application wsil-wls is transitioning from STATE_PREPARED to STATE_NEW on server soa_server1.>
####<Sep 9, 2010 12:45:33 PM EEST> <Info> <Deployer> <Ammar> <soa_server1> <[ACTIVE] ExecuteThread: '0' for queue: 'weblogic.kernel.Default (self-tuning)'> <<WLS Kernel>> <> <> <1284025533968> <BEA-149060> <Module /inspection.wsil of application wsil-wls successfully transitioned from STATE_PREPARED to STATE_NEW on server soa_server1.>
####<Sep 9, 2010 12:45:35 PM EEST> <Info> <Diagnostics> <Ammar> <soa_server1> <[ACTIVE] ExecuteThread: '0' for queue: 'weblogic.kernel.Default (self-tuning)'> <<WLS Kernel>> <> <> <1284025535281> <BEA-320000> <The Diagnostics subsystem is initializing on Server soa_server1.>
####<Sep 9, 2010 12:45:35 PM EEST> <Critical> <WebLogicServer> <Ammar> <soa_server1> <main> <<WLS Kernel>> <> <> <1284025535906> <BEA-000386> <Server subsystem failed. Reason: java.lang.OutOfMemoryError: PermGen space
java.lang.OutOfMemoryError: PermGen space

To fix the issue, i found two references

One from metalink that says

Solution

1. Edit the file <middleware home>/wlserver_10.3/common/nodemanager/nodemanager.properties. Change the parameter StartScriptEnabled to "true"
    StartScriptEnabled=true
    Save the changes.
2. Restart Node Manager
3. Login to the WLS console and verify that you can stop and start the managed server



Unfortunately, it did not work

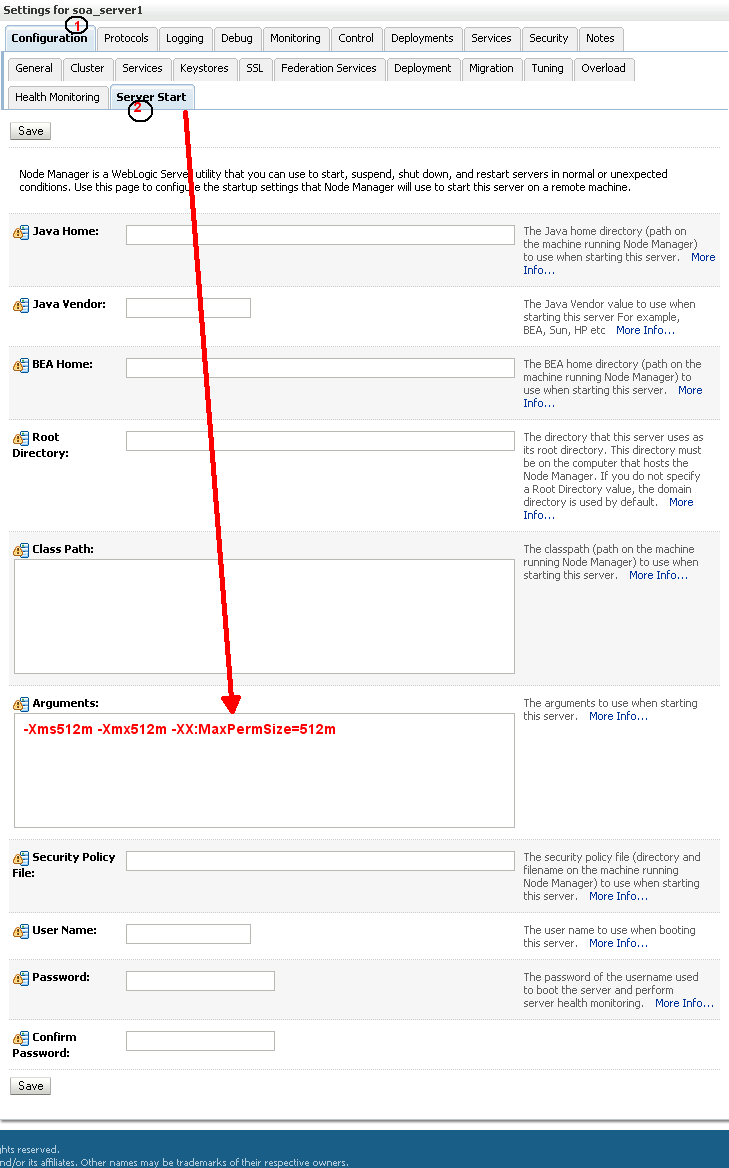

The other was to set the memory env variable directly using the Admin Console in the Setting for soa_server1 page

and filling the values  in the arguments  Text Area





make sure you save the setting, and try to start the soa_serve1 again



If you could not navigate your way around to this page, the following image will help

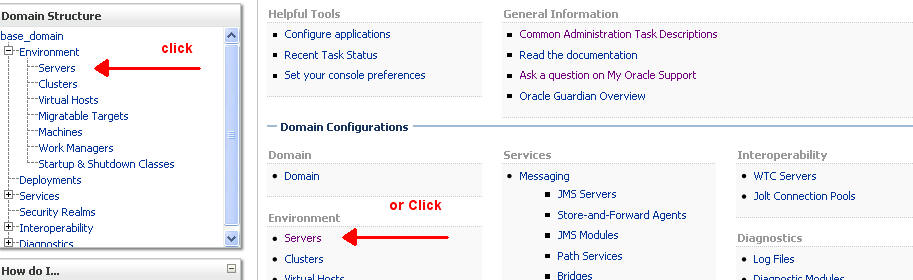

Environment  (Shown below) --> Servers (shown below) -- Select Soa_server1  (Shown below) -- Configuration Tab (show above), Server Starts (Show above)

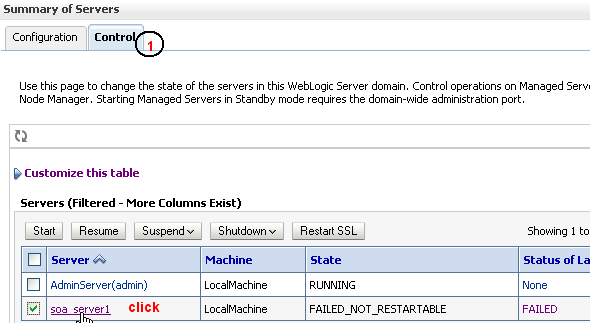

then Go to Control Tab, check Soa_server1 and click on the link

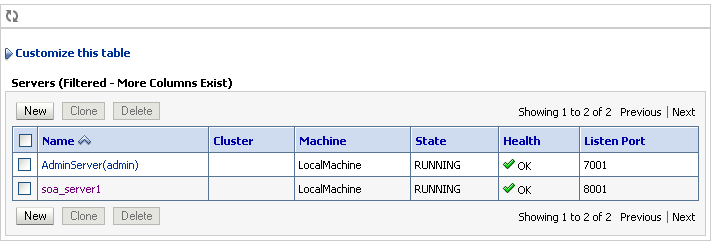

It should run successfully







Ok, the soa_server1 is running, i then created a simple SOA task and tried to deploy it on the soa_server1, but the deployment failed.  The soa-infra component is not alive within the soa_server1 due to the fact that soa-infra.ear is not found . After some investigation, i found out that you need to install the entire SOA Suite (some 1.7 GB).



I installed SOA Suite Version 11.1.1.2

The current WLS version was 11.1.1.3



I faced the same  memory issues (Which incidentally work without a problem using the Jrocket JDK)

and the soa-infra deployment failed due to wsdl class not found error.  After more and more investigation, i had to upgrade the SOA to 11.1.1.3  (another 1.9 GB) and then all worked fine



Ammar
